Name: ECS100US12 Open frame AC-DC power supply
Brand: XP Power
Availability: InStock

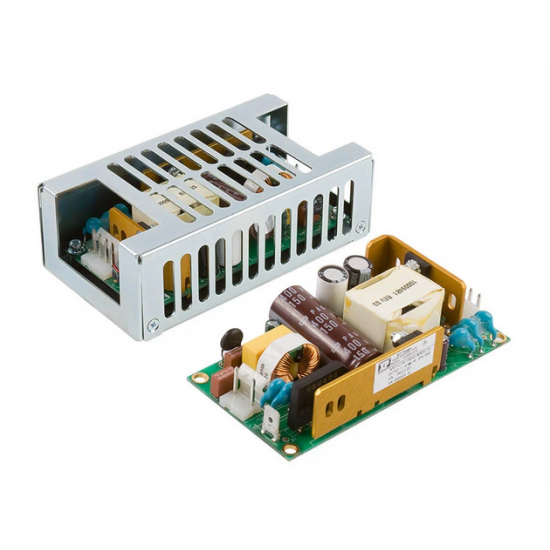

ECS100US12 Open frame AC-DC power supply

(End of Life - product being phased out)

100W fan cooled 80W convection cooled 4" x 2" open frame AC-DC power supplies with medical (2 X MOPP) & ITE approvals

Power Supply
Input Type	80-264 VAC
Output Voltage	12 VDC
Efficiency	Up to 90%
Temperature	-20 ̊C (-40 ̊C, ECS130) to +70 ̊C derate linearly from +50 ̊C at 2.5%/ ̊C to 50% load at +70 ̊C.
MTBF(hrs)	834,000 hrs
Output Connector	Molex PN 09-65-2048
Dimensions (mm)	101.6 x 50.8 x 31.8

File	Size
SF_ECS65-130.pdf	1.72MB	Download
