Name: APAX-5580 Control IPC
Brand: Advantech
Availability: InStock

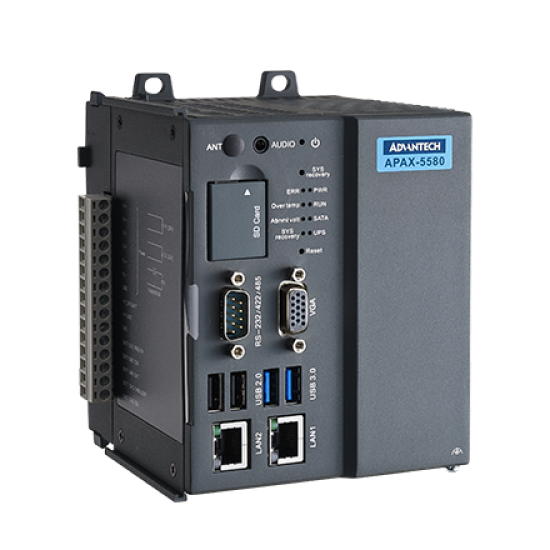

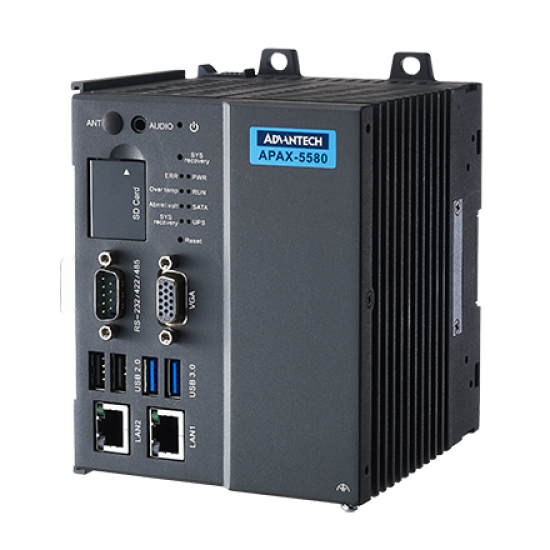

APAX-5580 Control IPC

APAX-5580 CIRCUIT MODULE, PC-based Controller, Intel ® CoreTM i7/i3/Celeron ® Control IPC
w/ 2 x GbE, 2 x mPCIe, VGA

Computer System
CPU	4th Generation Intel® Core™ i7/i3/Celeron Processors
Memory	On-board 4GB (8GB optional)
Chipset	Integrated Intel 8 series chipset
Storage	1 x mSATA, 1 x SD, 1 x SD (for OS backup)
Display Interface	1 x VGA, supports 1920 X 1080 @ 60 Hz 24 bpp
Serial Ports	1 x RS-232/422/485, DB9, 50 ~ 115.2kbps
Ethernet	2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
Power Input	24 V DC ± 20%
Dimensions (mm)	(W X H X D) 117 x 148.5 x 106 mm
Certifications	CE, FCC, UL

File	Size
APAX-5580.pdf	454.75KB	Download
