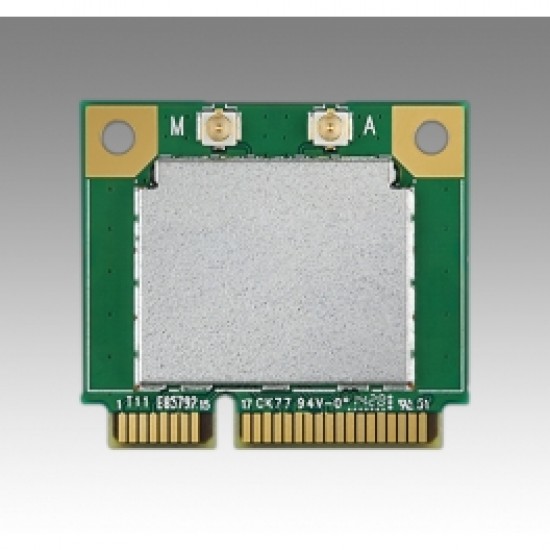

EWM-W157H01E Wireless and Bluetooth module

EWM-W157H01E Wireless and Bluetooth module
EWM-W157H01E Wireless and Bluetooth module

(End of Life)

802.11 ac/a/b/g/n + Bluetooth 4.0 Half-size Mini PCIe Card


Features

  • IEEE 802.11 a/b/g/n/ac + Bluetooth 4.0 HS standard
  • 1Tx/ 1Rx
  • Up to 433 Mbps data rate
  • 64/128-bit WEP, 802.1x, TKIP and AES
  • Operating temperature: 0 to 70°C


Specifications

Main Chipset
Realtek RTL8821AE
Tx/Rx
1Tx/ 1Rx (2 U.FL connectors)
Standard Conformance
802.11 a/b/g/n/ac
Form Factor
Half-size Mini PCIe card
Interface
PCI-E
Operation Voltage
DC 3.3V ±5%
Power Consumption

WiFi Continue TX: 359.5 mA

BT Continue TX: 54.9 mA

Security
64/128 bit WEP
O.S Supported
Windows 7/8/8.1
Temperature Ranges
Operation: 0 to 70°C
Dimensions (L x W x H)
26.65 x 29.85 x 3.95 mm


File Size
EWM-W157H_DS.pdf 395.44KB Download
