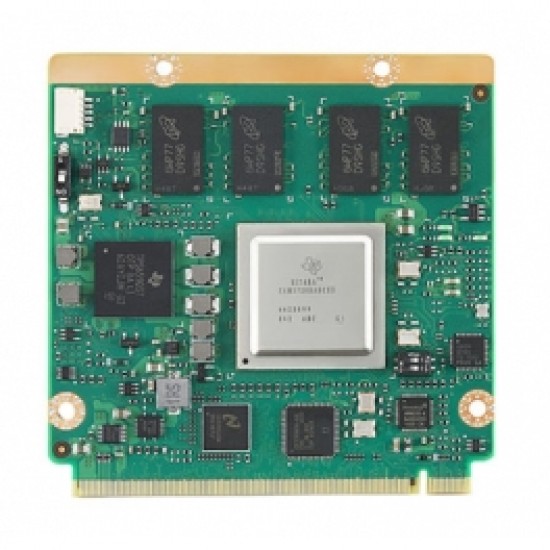

TI Sitara. AM5728 Cortex -A15 1.5GHz Qseven Module
Features
TI Sitara AM5728 Processor that integrated Dual ARM Cortex-A15 up to
1.5GHz and Dual TI C66x VLIW floating-point DSP cores and Dual ARM
Cortex-M4 Programmable Real-Time Unit
Onboard DDR3-1066 memory 2 GB and eMMC Flash 8 GB
Support 1 x LVDS, 1 x HDMI, 1 x USB2.0 OTG, 4 x USB2.0 HOST,
1 x USB3.0, 2 x UART, 1 x CAN, 1 x SATA, 2 x I2C, 1 x I2S, 2 x PCIE 1 lane
Operating temperature 0 ~ 60 °C / -40 ~ 85 °C
Supports Linux Yocto
Specifications
Form Factor
Qseveb2.0(default) / 2.1(option)
CPU
TI ARM Cortex-A15 Sitara AM5728 1.5GHz
Memory
On board DDR3-1066MHz 2GB
Flash
8GB eMMC NAND Flash for O.S & 4MB SPI NOR Flash for ADV loader
