Name: AIMB-217 Mini-ITX motherboard
Brand: Advantech
Availability: InStock

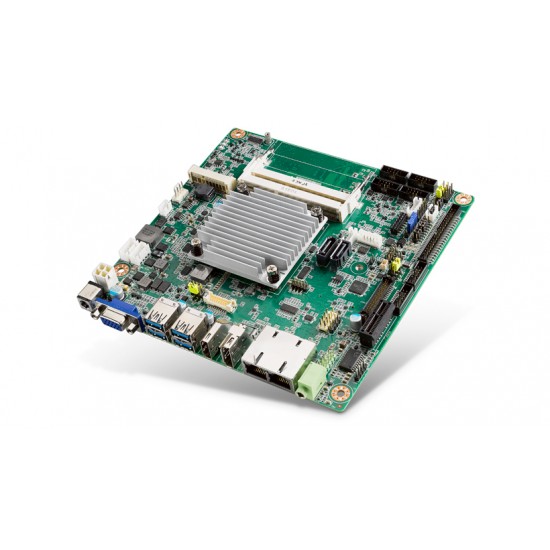

AIMB-217 Mini-ITX motherboard

Intel® Pentium/Celeron/Atom Quad Core/Dual Core Mini-ITX with DP++/HDMI/VGA, 6 COM, and Dual LAN

Motherboard
CPU	AIMB-217Z-S6A2E: Intel Atom® x7-E3950 Processor AIMB-217D-S6A2E: Intel® Pentium® N4200 1.1/2.5GHz (Turbo), 6W (4C/1866) AIMB-217N-S6A2E: Intel® Celeron® N3350 Dual Core SoC
Memory	DDR3L 1866 MHz, Max 8GB 2 x 204 pin SODIMM
Storage Devices	2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay Msata
Ethernet	LAN1/ LAN2: Realtek RTL8111G
USB	4 x USB 3.0 ports (Rear I/O) 4 x USB 2.0 ports (Internal connector) +4 USB 2.0 (USB9/10/11/12 is BOM optional)
PCIe	PCIe x1 or 1 M.2 (E key), 1 Mini-PCIe expansion slot
Serial Port	6 ( 5 x RS232, 1 x RS232/ 422/ 485)
Audio	Realtek ALC888S, High Definition Audio (HD)

File	Size
AIMB-217_DS.pdf	911.31KB	Download

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Qty

Add to Cart

Add to Wish List Compare this Product

AIMB-217 Mini-ITX motherboard
