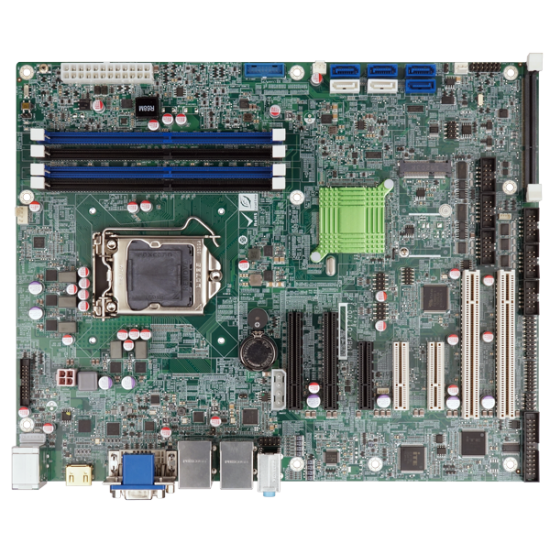

IMBA-C2360 ATX motherboard

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series, Core™ i3, Pentium®, Celeron® processor per Intel® C236

» LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported

» Dual-channel DDR4 2133 MHz

» Intel® PCIe GbE with Intel® AMT11.0 support

» Support independent triple display with HDMI, DVI and VGA

» Support PCI Express generation 3.0 at 8GT/s I/O bandwidth

» USB 3.0 and SATA 6Gb/s

» Support IPMI 2.0 via iRIS-2400

» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Motherboard
CPU	LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
Chipset	Intel® C236
Memory	Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB
Storage Devices	6 x SATA Interface 6Gb/s
Display Interface	Triple independent display 1 x VGA (up to 1920x1200@60Hz) 1 x DVI-D (up to 1920x1200@60Hz) 1 x HDMI 2.0 (up to 4096x2160@60Hz) 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet	LAN1: Intel® I219LM with Intel® AMT 11.0 support LAN2: Intel® I210AT PCIe controller with NCSI support
USB	External: 2 x USB 2.0, 4 x USB 3.2 Gen 1 (5Gb/s) Internal: 2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin, P=2.0) , 4 x USB 2.0 (2x4 pin, P=2.0)
PCIe	1 x Full-size PCIe Mini card slot (support mSATA) 2 x PCIe x8 slot (Gen3) 2 x PCI slot 3 x PCIe x4 slot (Gen3
Serial Port	(Internal) 2 x RS-232/422/485 (2x5 pin, P=2.54), 4 x RS-232 (2x5 pin, P=2.54)
Audio	Realtek ALC888S HD Audio codec supports 7.1-channel

File	Size
IMBA-C2360_20220412.pdf	470.01KB	Download
