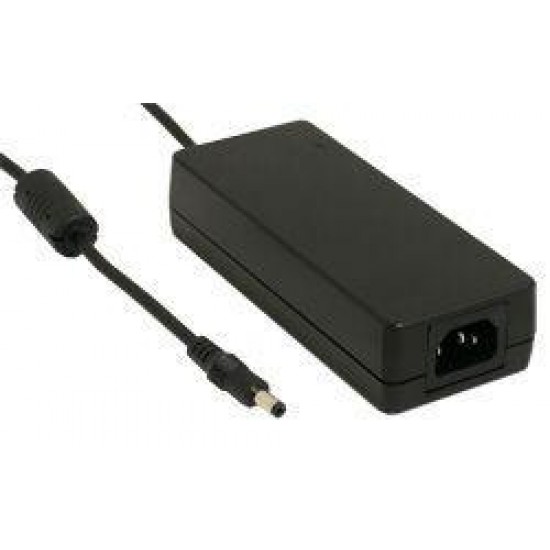

GST90A24-P1M Power Supply Adapter

GST90A24-P1M AC-DC Industrial desktop adapter with PFC; Input 3 pin IEC320-C14 socket; Output 24VDC at 3.75A with P1M tuning fork plug OD 5.5mm; ID 2.5mm; Length 1200±50 mm

Power Supply
Input Type	110/230 universal input 90 - 264
Output Voltage	24V @ 3.75 A
Output Power	90W
Efficiency	90%
Temperature	Operating: -30 ~ +70 (Refer to "Derating Curve") Storage: 40 ~ +85 , 10 ~ 95% RH non-condensing℃
MTBF(hrs)	2529.4K hrs min. Telcordia SR-332 (Bellcore) ; 389.3K hrs min. MIL-HDBK-217F (25 )
Dimensions (mm)	1456032mm (LWH)

File	Size
GST90A-spec.pdf	782.94KB	Download
