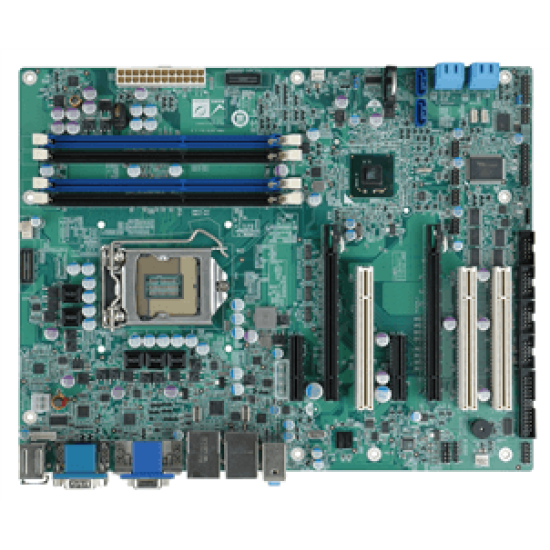

IMBA-C2060 ATX motherboard

IMBA-C2060 ATX motherboard
IMBA-C2060 ATX motherboard

End of Life

ATX motherboard supports 32nm LGA1155 Intel® Xeon® E3/Core™ i3/Celeron® CPU per Intel® C206

Motherboard
CPU LGA1155 socket supports Intel® Xeon® E3 quad-/ dual-core, Core™ i3 dual-core, Celeron® dual-core
Chipset Intel® C206
Memory Four 240-pin 1333/1066 MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMMs support up to 32 GB
Storage Devices 2 x SATA 6Gb/s (RAID 0/1/5/10 supported) 4 x SATA 3Gb/s (RAID 0/1/5/10 supported)
Display Interface Dual Independent Display 1 x VGA (up to 2048x1536@75Hz) 1 x HDMI (up to 1920x1200@60Hz) 1 x DVI-D (up to 1920x1200@60Hz)
Ethernet LAN1: Intel® 82574L PCIe controller LAN2: Intel® 82579 PHY with Intel® AMT 7.0 supported
USB External:2 x USB 2.0, 2 x USB 3.0 Internal: 8 x USB 2.0 (2x4 pin, P=2.54)
PCIe 2 x PCIe x16 (share 1 PCIe x 16 signal) 2 x PCIe x4 slots 3 x PCI slots
Serial Port External: 1 x RS-232 Internal: 4 x RS-232 (2x5 pin, P=2.54)
Audio Realtek ALC892 HD Audio codec
File Size
IMBA-C2060-R20IMBA-Q670-R30.pdf 537.98KB Download
