8th/9th Gen Intel® Core™ i9/i7/i5/i3, Pentium®
and Celeron® Processors, Intel® Xeon® E-2100 Processors, Intel® Xeon®
E-2200 Processors, Single LGA-1151 (Socket H4), Up to 95W TDP
Intel® C246
Single LAN with Intel® Ethernet Controller I210-AT
Shared with IPMI
Single LAN with Intel® PHY I219LM LAN controller
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
1 PCIe 3.0 x4,
1 PCIe 3.0 x1,
2 PCIex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2 Interface: 2 PCIe 3.0 x4
M.2 Form Factor: 2242/2260/2280/22110
M.2 Key: M-Key

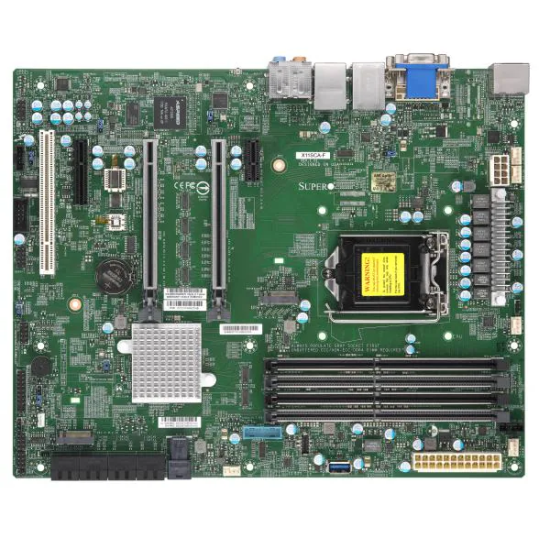

Motherboard
CPU
Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
Chipset
Intel® C246
Memory
4 DIMM slots Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
Memory Type 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes 2GB, 4GB, 8GB, 16GB, 32GB
1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Ethernet
2 1GbE LAN ports
Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT, Shared with IPMI
USB
2 USB 2.0 port(s) (2 via header)
4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A)
4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A)
PCIe
1 PCIe 3.0 x4,
1 PCIe 3.0 x1,
2 PCIex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
